    12VDC Pv Grid Inverter 600W Pv Panel Inverter Overload Protection

    Ask Lasest Price
    Brand Name : SUG
    Model Number : SGPR-600W
    Certification : CE & ROHS & FCC & PSE
    Price :
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 9000pcs/month
    Delivery Time : Sample: 1-2days Bulk Order: 10-15days
    • Product Details
    • Company Profile

    12VDC Pv Grid Inverter 600W Pv Panel Inverter Overload Protection

    Power Inverter High Frequency off Grid 12V/120V USA Socket Pure Sine Wave DC/AC


    Description of the Products:

    This unit is with 8 safety protection, reverse connection protection, surge power protection, over temperature protection

    low voltage protection, overload protection, short circuit protection, over current protection, over voltage protection.

    We have different sockets for countries, like EU, USA, Japan, UK, Universal, Australia and so on.

    Intelligent control fans, the fans works when temperature reaches 45℃, it will stop working when the tempearture reduce.


    Company Profile:

    SUG New Energy Co., Ltd specialize in manufacturing high performance power inverter like Pure Sine Wave Inverter, Modified Sine Wave Inverter, Mini Car Inverter, PV On-grid Inverter, Solar Controller, Solar Lighting, Solar System, UPS, Battery Charger, DC Power Supply, Transformer and related accessories. To improve our research and high technology ability, we cooperated with China Electronics Technology Group which was located in Beijing in 2011, now we have established PCB & electronic research center and advanced testing lab.

    SUG is growing fast through years' great effort, now we have become one of the leading inverter manufacturer in China. We are working with reliable distributors with online & offline network throughout China. We look forward to expanding our business with new agent and customer for our mutual benefit with each other.


    FAQ:

    1.What is deep cycle battery?

    A deep cycle battery is designed with the capability of being discharged and charged hundreds of times. Many of these batteries may be totally discharged before they are ever recharged.


    Production Specification:


    ModelSGPR600-121SGPR600-122SGPR600-241SGPR600-242SGPR600-481SGPR600-482
    Rated Power600W
    Surge Power1200W(few seconds)
    Input Voltage12VDC24VDC48VDC
    Output Voltage110VAC±5%220VAC±5%110VAC±5%220VAC±5%110VAC±5%220VAC±5%
    USB Port5V 0.5A
    Frequency50Hz±3 or 60Hz±3
    Output WaveformPure Sine Wave
    Soft StartYES
    AC RegulationTHD<3%(Linear Load)
    Output Efficiency94% MAX
    No Load Current0.6A0.3A0.1A
    DC Voltage Range10-15.5V20-31V40-61V
    Low Voltage Alarm10.5±0.5V21±0.5V42±1V
    Low Voltage Shut Down10±0.5V20±0.5V40±1V
    Low Voltage Recovery13±0.5V24±0.5V48±1V
    Over Voltage Shut Down15.5±0.5V31±0.5V61±1V
    Over Voltage Recovery14.8V±0.5V29V±0.5V59V±1V
    Cooling WayIntelligent Cooling Fan
    ProtectionBattery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
    Working Temperature-10ºC - +50ºC
    Net Dimension20.2*15*8cm (L×W×H)
    Meas./Ctn63*34*38.5cm / 10pcs
    N.W./Unit2.0KG
    G.W./Ctn24KGS
    Packingbox
    Warranty2 Years

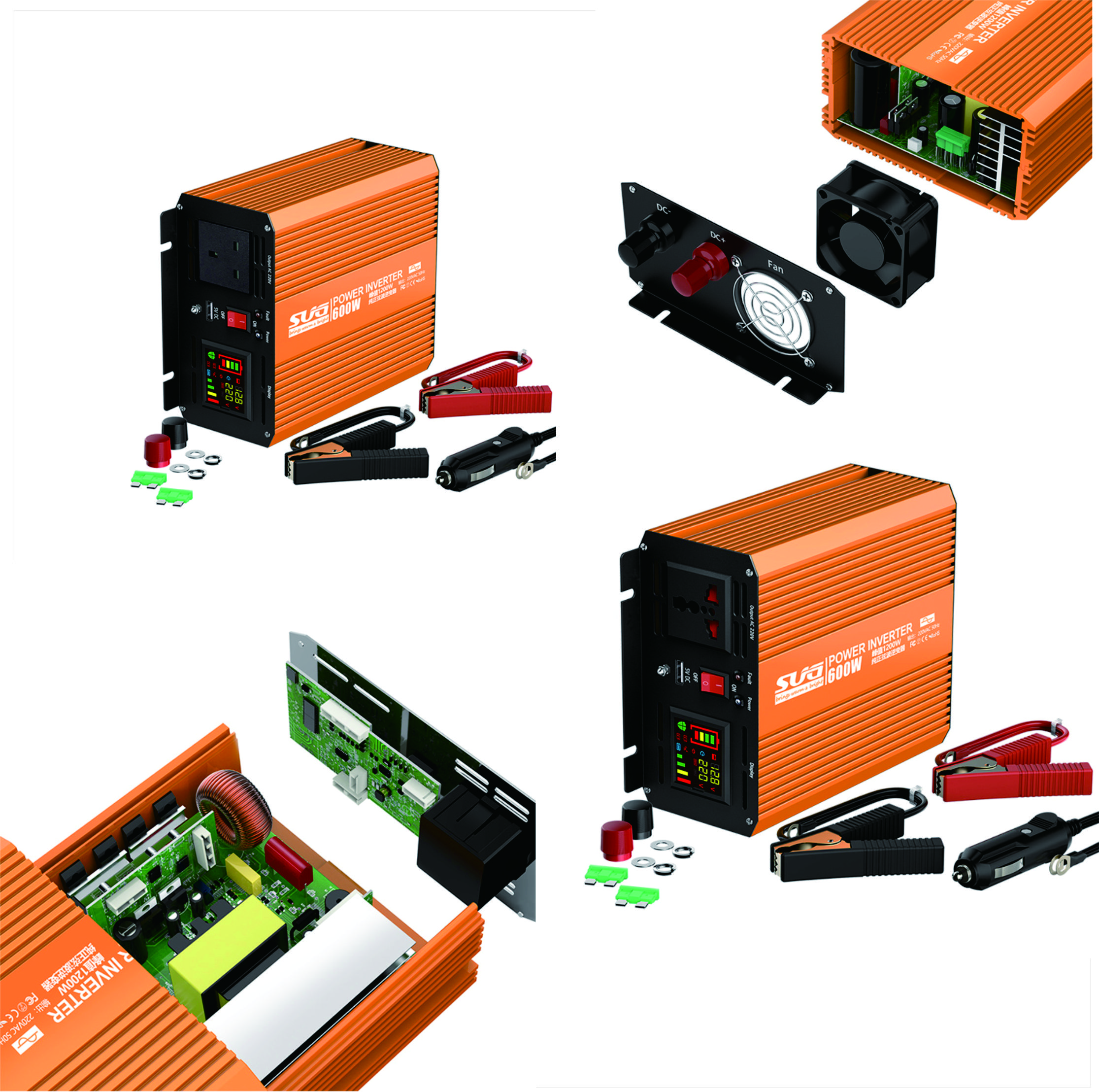

    Inverter Show:
