Customized 2000W off Grid DC to AC Pure Sine Wave Power Inverter
Company Profile:
SUG(shanggao) in Chinese means Gracious & Exploration, which is the
spirit we are following since our establish. For years we have been
concentrating on offering the integrated power solution to our
worldwide customers, and has gained various of certificate
worldwide, such as FCC & ETL for North America, CE & ROHS for Europe, PSE for Japan.
Introduction of the Inverter:
10 years continous working and improving, the efficiency raises 5%.
8 safety protection, reverse connection protection, surge power
protection, over temperature protection,
low voltage protection, overload protection, short circuit
protection, over current protection, over voltage protection.
Sockets for different country, USA, Japan, EU, Australia, UK,
Brazil and so on.
Products Specification:
| Model | SGPR2000-121 | SGPR2000-122 | SGPR2000-241 | SGPR2000-242 | SGPR2000-481 | SGPR2000-482 |
| Rated Power | 2000W |
| Surge Power | 4000W(few seconds) |
| Input Voltage | 12VDC | 24VDC | 48VDC |
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5VDC |
| Frequency | 50Hz±3 or 60Hz±3 |
| Output Waveform | Pure Sine Wave |
| Soft Start | YES |
| AC Regulation | THD<3%(Linear Load) |
| Output Efficiency | 94% MAX |
| No Load Current | 1.4A | 0.8A | 0.3A |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V |
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V |
| Cooling Way | Intelligent Cooling Fan |
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature,
Short Circuit |
| Working Temperature | -10ºC - +50ºC |
| Net Dimension | 37.3*16.5*9.2cm (L×W×H) |
| Meas./Ctn | 49*46*31.5cm/4pcs |
| N.W./Unit | 4.3KG |
| G.W./Ctn | 20KGS |
| Packing | box |
| Warranty | 2 Years |

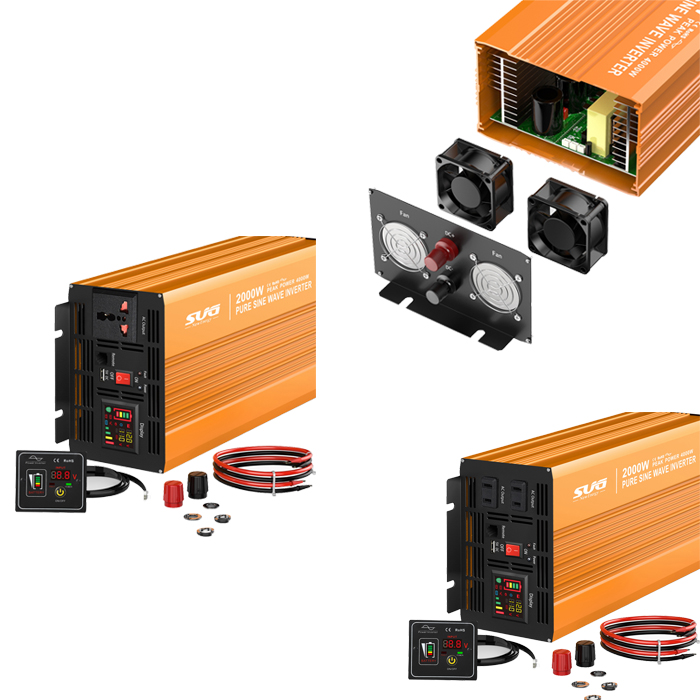

Inverter Display:
SUG' Power Inverters Have Passed The PSE Certificate For Japan
