OEM ODM 2000W Pure Sine Wave Power Energy Inverter
Introduction of the Inverter:
We own CE, ROHS certificates for EU, PSE certificates for Japan,
FCC and ETL certificates for USA.
For sample, it needs 2-3 working days and 100% payment in advance
and delivered by UPS, FEDEX, DHL...
For big order, it needs 15-20 working days and 30% payment in
advance.
We will deliver the goods when we receive the balance.
It can run any load, such as TV, fridge, computer and so on.
FAQ:
1.Why do buzzing noise come from stereos when using a modified sine
wave inverter?
Some inexpensive stereos use power supplies that cannot eliminate
common-mode noise. These would require a sine wave inverter to
operate noise-free.
2.Can I run a computer on the inverter?
Yes, you can. All appropriate rating inverters can easily and
safely supply power to a computer. In fact the output voltage from
an inverter is often better than that from the electricity grid.
Products Specification:
| Model | SGPR2000-121 | SGPR2000-122 | SGPR2000-241 | SGPR2000-242 | SGPR2000-481 | SGPR2000-482 |
| Rated Power | 2000W |
| Surge Power | 4000W(few seconds) |
| Input Voltage | 12VDC | 24VDC | 48VDC |
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5VDC |
| Frequency | 50Hz±3 or 60Hz±3 |
| Output Waveform | Pure Sine Wave |
| Soft Start | YES |
| AC Regulation | THD<3%(Linear Load) |
| Output Efficiency | 94% MAX |
| No Load Current | 1.4A | 0.8A | 0.3A |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V |
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V |
| Cooling Way | Intelligent Cooling Fan |
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature,
Short Circuit |
| Working Temperature | -10ºC - +50ºC |
| Net Dimension | 37.3*16.5*9.2cm (L×W×H) |
| Meas./Ctn | 49*46*31.5cm/4pcs |
| N.W./Unit | 4.3KG |
| G.W./Ctn | 20KGS |
| Packing | box |
| Warranty | 2 Years |
New Release: 12V/24VDC Double Input Modified Sine Wave Inverter,
Auto Recognize

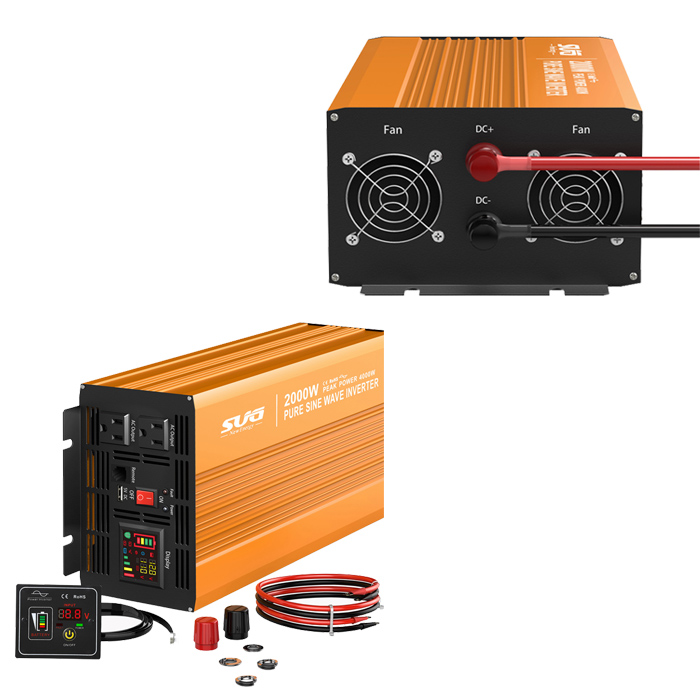

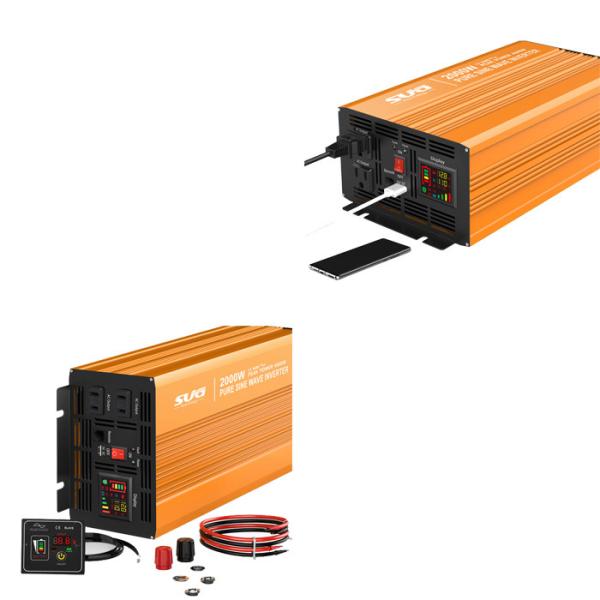

Inverter Show:
