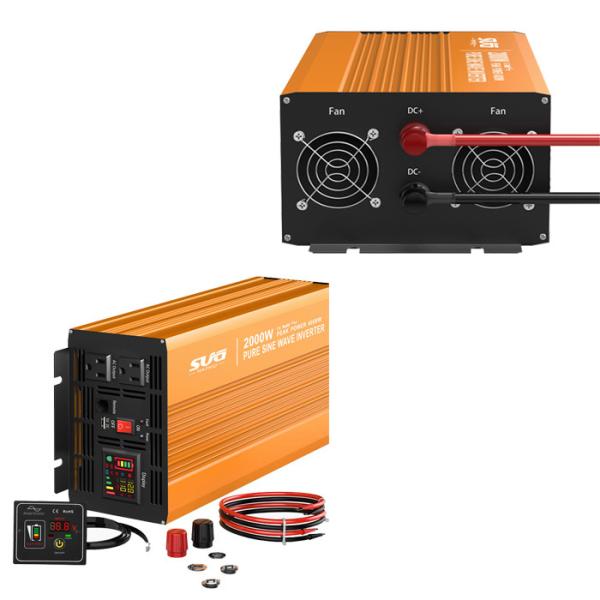

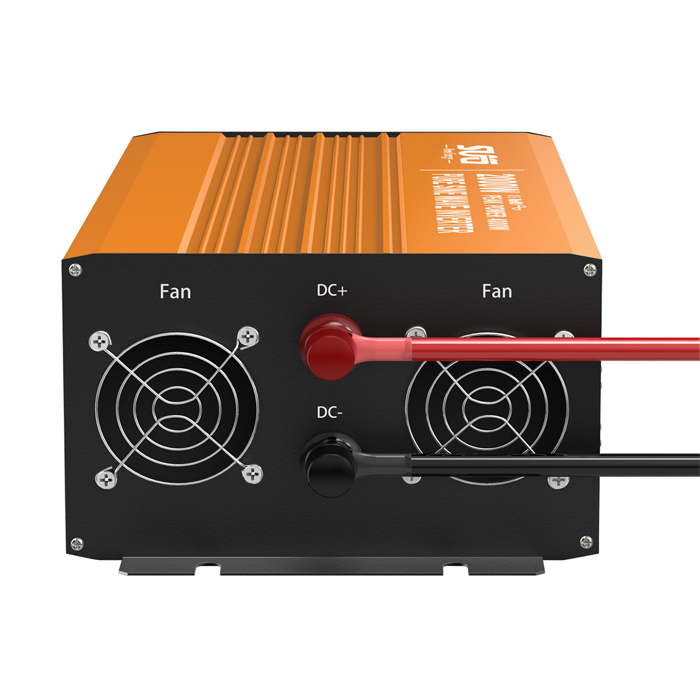

2000W 120VDC 110VAC PV Off Grid Inverter Soft Start

Ask Lasest Price
Brand Name :	SUG
Model Number :	SGPR-2000W
Certification :	CE & ROHS & FCC & PSE
Price :
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	9000pcs/month
Delivery Time :	Sample: 1-2days Bulk Order: 10-15days

Add to Cart

Product Details
Company Profile

2000W 120VDC 110VAC PV Off Grid Inverter Soft Start

2000W 120VDC to 110VAC High Frequency off Grid Inverter

Description of the Products:

SGPR 2000W is high frequency pure sine wave inverter with E-display and remote switch.

Its rated power is 2000w and peak power is 4000w.

Pure sine wave output waveform

The peak power is twice as rated power

It is with soft start.

FAQ:

1.What is an inverter?

An inverter is a DC powered device that takes DC power (battery or solar, for example) and converts it into AC "household" power for running electronics/electrical equipment and appliances.

2.How is an inverter different from an UPS?

An UPS typically includes the battery and battery charger in one stand-alone unit. The input voltage window for UPS is comparatively less than that of inverter. However, there are UPS systems that use external batteries, and Power Stream makes inverters with battery chargers, so the differences blur as features proliferate.

Products Specification:

Model	SGPR2000-121	SGPR2000-122	SGPR2000-241	SGPR2000-242	SGPR2000-481	SGPR2000-482
Rated Power	2000W
Surge Power	4000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5VDC
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	1.4A		0.8A		0.3A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	37.316.59.2cm (L×W×H)
Meas./Ctn	494631.5cm/4pcs
N.W./Unit	4.3KG
G.W./Ctn	20KGS
Packing	box
Warranty	2 Years

Inverter Display:

Factory Display:
