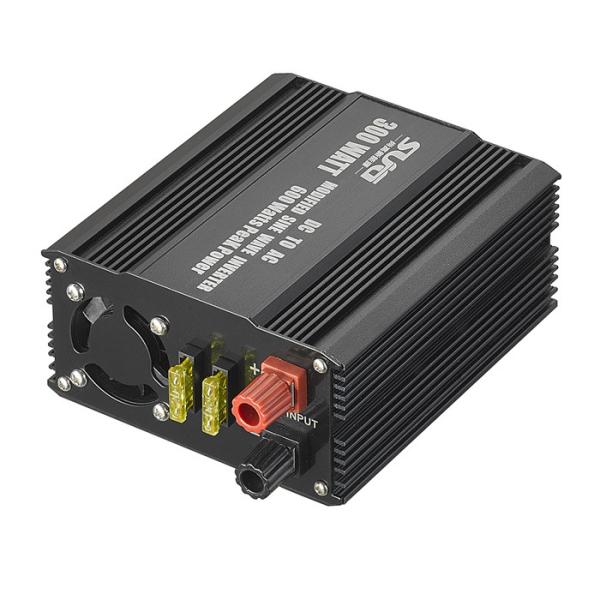

    Off Grid SGM 300W Modified Sine Wave Inverter

    Ask Lasest Price
    Brand Name : SUG
    Model Number : SGM-300W
    Certification : CE & ROHS & FCC & PSE
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 12000pcs/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    Off Grid SGM 300W Modified Sine Wave Inverter

    Off Grid SGM 300W Modified Sine Wave Inverter

    Model: SGM-300w

    Rated power: 300w

    Peak power: 600w

    Soft start: yes


    Specification:

    1. 300W output power and 6000W surge power.
    2. Suitable for mobile AC power used in car, household and industry.
    3. 12/24/36/48/60/72/96VDC
    4. 110/120/220/230/240VAC
    5. USA/EU/UK/Australia/South Africa…socket/outlet

    All Protection:

    1.Over-load

    2.Over-voltage

    3.Low-voltage

    4.Buzzer Alarm

    5.Short-circuit

    6.Over-temperature


    Products Specification :

    ModelSGM300A-121SGM300A-122SGM300A-241SGM300A-242SGM300A-481SGM300A-482
    Rated Power300W
    Surge Power600W(few seconds)
    Input Voltage12VDC24VDC48VDC
    Output Voltage110VAC±5%220VAC±5%110VAC±5%220VAC±5%110VAC±5%220VAC±5%
    USB Port5V 1A
    Frequency50Hz±3 or 60Hz±3
    Output WaveformModified Sine Wave
    Soft StartYES
    AC RegulationTHD<3%(Linear Load)
    DC Voltage Range10-15.5V20-31V40-61V
    Low Voltage Alarm10.5±0.5V21±0.5V42±1V
    Low Voltage Shut Down10±0.5V20±0.5V40±1V
    Low Voltage Recovery13±0.5V24±0.5V48±1V
    Over Voltage Shut Down15.5±0.5V31±0.5V61±1V
    Over Voltage Recovery14.8V±0.5V29V±0.5V59V±1V
    Cooling WayIntelligent Cooling Fan
    ProtectionBattery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
    Working Temperature-10ºC - +50ºC
    Net Dimension15.5*11.2*5.8cm (L×W×H)
    Inner Box Dimension24*14.3*6.1cm(L×W×H)
    Meas./Ctn53*51*34cm/32 pcs
    N.W./Unit0.7kg
    G.W./Ctn24.2KGS
    PackingCarton
    Warranty1 Years
