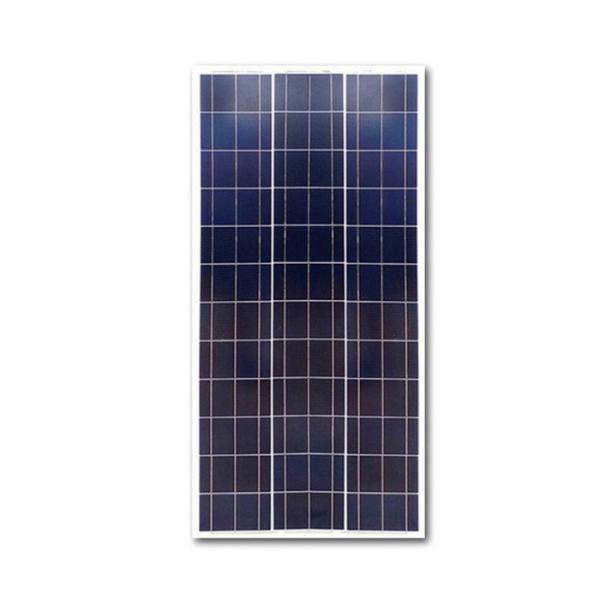

    High Efficiency 105W TUV Solar Panels For Home

    Ask Lasest Price
    Brand Name : SUG
    Model Number : SPS-85W-105W
    Certification : CE & ROHS & FCC & PSE
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 15800pcs/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    High Efficiency 105W TUV Solar Panels For Home

    High Efficiency 105W TUV Solar Panels For Home


    Feature:


    High-transmissivity low-iron tempered glass, strong aluminium frame using UV-resistant silicon;

    Aesthetic appearance with excellent efficiency based on innovative photovoltalic technologies;

    High quality,strong aluminium frame,passing mechanical load testing 5400 Pa and wind pressure 2400Pa;


    Performance
    ModelSPS85W-36PSPS90W-36PSPS95W-36PSPS100W-36PSPS105W-36P
    Maximum Power at STC(Pmax)85W90W95W100W105W
    Optimum Operating Voltage (Vmp)17.50V17.50V18.80V18.00V18.20V
    Optimum Operating Current (Imp)4.875A5.143A5.337A5.555A5.769A
    Open-Circuit Voltage (Voc)21.18V21.90V22.54V22.14V22.02V
    Short-Circuit Current(Isc)5.246A5.554A5.764A5.999A6.231A
    Solar Cell Efficiency(%)16.2016.5016.7017.5018.00
    Solar Module Efficiency(%)12.4413.1713.9014.6315.36
    Operating Temperature-40℃ ~ 85℃
    Maximum System VoltageDC1000V
    Maximum Series Fuse Rating15A
    Power Tolerance± 3%
    STCIrradiance 1000W/,Modules Temperature 25℃,AM=1.5
