3.5kw 5VDC Pcb Modified Sine Wave Inverter Low Voltage

    Buy cheap 3.5kw 5VDC Pcb Modified Sine Wave Inverter Low Voltage from wholesalers

    Buy cheap 3.5kw 5VDC Pcb Modified Sine Wave Inverter Low Voltage from wholesalers
    • Buy cheap 3.5kw 5VDC Pcb Modified Sine Wave Inverter Low Voltage from wholesalers

    3.5kw 5VDC Pcb Modified Sine Wave Inverter Low Voltage

    Ask Lasest Price
    Brand Name : SUG
    Model Number : SGM-4000
    Certification : CE & ROHS & FCC & PSE
    Price : Negotiate
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 10000pcs/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

    3.5kw 5VDC Pcb Modified Sine Wave Inverter Low Voltage

    Solar Inverter Pcb 3.5kw Solar Inverter Kke Inverted Forks Efficiency Solar Inverter

    All Protection:
    1. Over-load
    2. Over-voltage
    3. Low-voltage
    4. Buzzer Alarm
    5. Short-circuit
    6. Over-temperature


    Products Specification :

    ModelSGM4000A-121SGM4000A-122SGM4000A-241SGM4000A-242SGM4000A-481SGM4000A-482
    Rated Power4000W
    Surge Power8000W(few seconds)
    Input Voltage12VDC24VDC48VDC
    Output Voltage110VAC±5%220VAC±5%110VAC±5%220VAC±5%110VAC±5%220VAC±5%
    USB Port5V 1A
    Frequency50Hz±3 or 60Hz±3

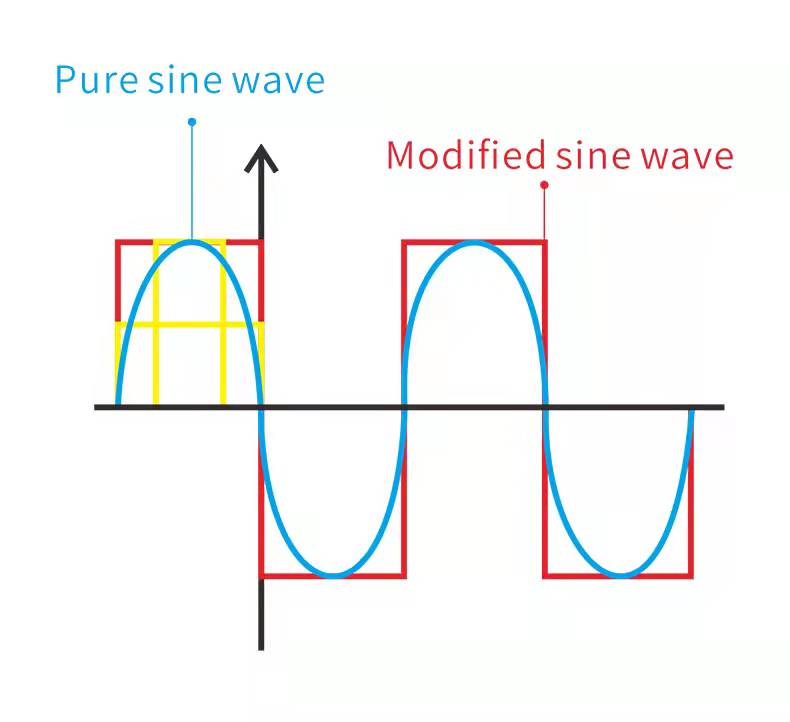

    Output WaveformModified Sine Wave
    Soft StartYES
    AC RegulationTHD<3%(Linear Load)
    DC Voltage Range10-15.5V20-31V40-61V
    Low Voltage Alarm10.5±0.5V21±0.5V42±1V
    Low Voltage Shut Down10±0.5V20±0.5V40±1V
    Low Voltage Recovery13±0.5V24±0.5V48±1V
    Over Voltage Shut Down15.5±0.5V31±0.5V61±1V
    Over Voltage Recovery14.8V±0.5V29V±0.5V59V±1V
    Cooling WayIntelligent Cooling Fan
    ProtectionBattery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit, Reverse Polarity
    Working Temperature-10ºC - +50ºC
    Net Dimension41*21.6*16cm (L×W×H)
    Meas./Ctn47.5*30.5*24cm/1 pcs
    N.W./Unit10.5kg
    G.W./Ctn11.5KGS
    PackingCarton
    Warranty1 Years
