Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication

    Buy cheap Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication from wholesalers

    Buy cheap Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication from wholesalers
    • Buy cheap Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication from wholesalers

    Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication

    Ask Lasest Price
    Brand Name : SUG
    Model Number : SGPE-1500W
    Certification : CE & ROHS & FCC & PSE
    Price :
    Payment Terms : T/T, Western Union, Paypal
    Supply Ability : 8000pcs/month
    Delivery Time : 15 working days
    • Product Details
    • Company Profile

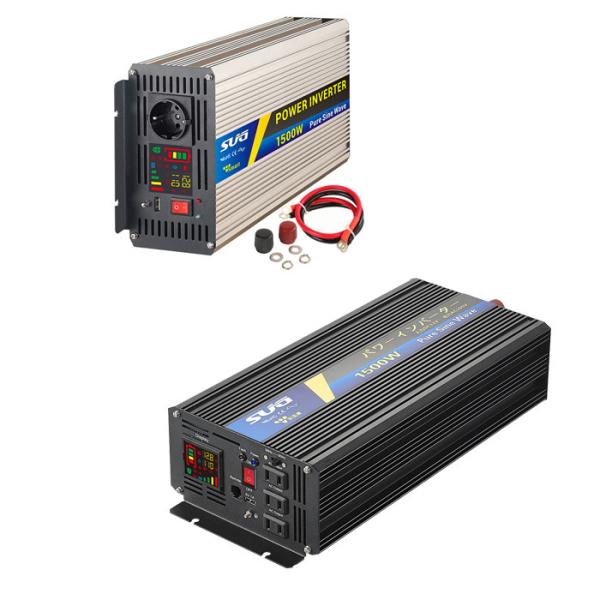

    Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication

    High Frequency Inverter ce rohs 1500w 120vdc/110vac Factory


    Introduction of the Products:

    1.100% pure sine wave output and constant power

    2. It is with CE, ROHS, FCC, ETL, PSE certificates.

    3. It is with E-display, remote switch, frequency switch and RS485 communication optional parts

    4. We have our own factory and can promise the quality.


    Product Specification:


    ModelSGPE1500-121SGPE1500-122SGPE1500-241SGPE1500-242SGPE1500-481SGPE1500-482
    Rated Power1500W
    Surge Power3000W(few seconds)
    Input Voltage12VDC24VDC48VDC
    Output Voltage110VAC±5%220VAC±5%110VAC±5%220VAC±5%110VAC±5%220VAC±5%
    USB Port5VDC
    Frequency50Hz±3 or 60Hz±3
    Output WaveformPure Sine Wave
    Soft StartYES
    AC RegulationTHD<3%(Linear Load)
    Output Efficiency94% MAX
    No Load Current1.2A0.6A0.3A
    DC Voltage Range10-15.5V20-31V40-61V
    Low Voltage Alarm10.5±0.5V21±0.5V42±1V
    Low Voltage Shut Down10±0.5V20±0.5V40±1V
    Low Voltage Recovery13±0.5V24±0.5V48±1V
    Over Voltage Shut Down15.5±0.5V31±0.5V61±1V
    Over Voltage Recovery14.8V±0.5V29V±0.5V59V±1V
    Cooling WayIntelligent Cooling Fan
    ProtectionBattery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
    Working Temperature-10ºC - +50ºC
    Net Dimension37.3*16.5*9.2cm (L×W×H)
    Meas./Ctn49*46*31.5cm / 4pcs
    N.W./Unit4.3KG
    G.W./Ctn20KGS
    Packingbox
    Warranty2 Years

    Quality Off Grid 120vdc Solar Power Inverter Pure Sine Wave RS485 Communication for sale
