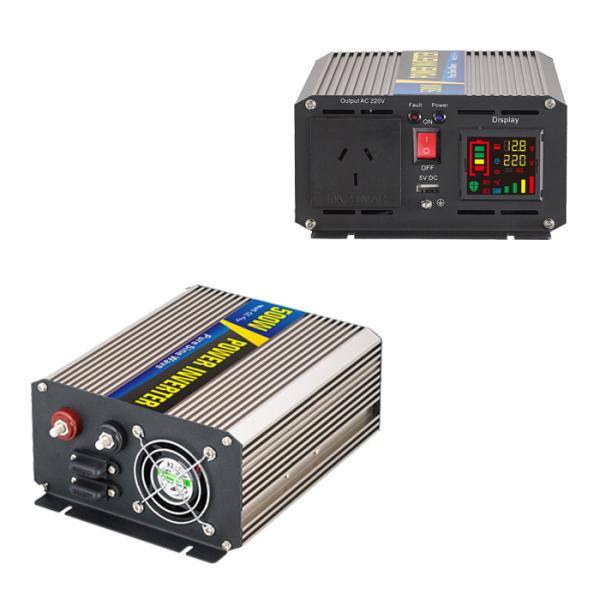

500w High Frequency Power Inverter 5VDC Solar Energy Power Inverter

Product Categories

SUG NEW ENERGY CO., LTD

Contact Now

Add to Cart

500w 12v 24v 36 48v Home Use Inverters for Solar Energy System

1. LED display and can show the input voltage, output voltage, frequency, load and all kinds of protection.

2. We can supply USA, EU, UK, Japan, Australia, universal and different country's socket.

3. Intelligent fan, safe and reliable

Product Specification:

Model	SGPE500-121	SGPE500-122	SGPE500-241	SGPE500-242	SGPE500-481	SGPE500-482
Rated Power	500W
Surge Power	1000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5VDC
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	20.2158cm (L×W×H)
Meas./Ctn	633438.5cm / 10pcs
N.W./Unit	2.0KG
G.W./Ctn	24KGS
Packing	box
Warranty	2 Years
