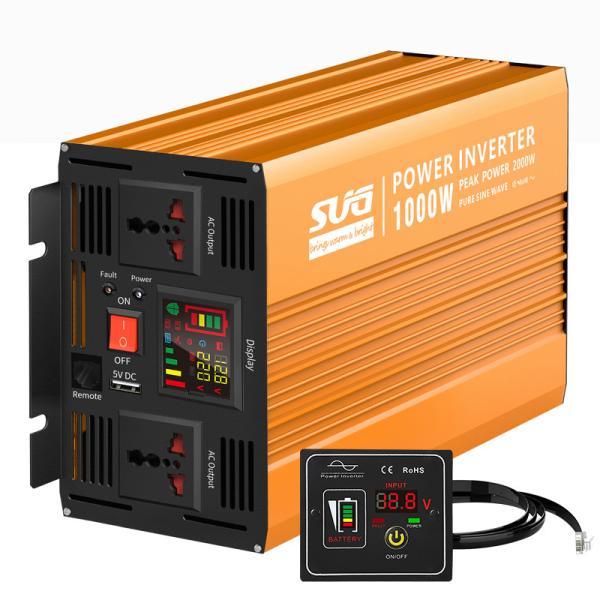

ROHS 12v Dc To 110v 220v Ac Off Grid Pure Sine Wave Power Inverter 1000W

Ask Lasest Price
Brand Name :	SUG
Model Number :	SGPE-1000
Price :	$67.00/sets 1-499 sets

Add to Cart

Product Details
Company Profile

ROHS 12v Dc To 110v 220v Ac Off Grid Pure Sine Wave Power Inverter 1000W

Our Advantages

Honest marketing

1.we are manufacturer with production experience for more than 10 years 2.We own ISO,CE,ROHS,FCC,ETL,PSE certificates 3.We accept OEM and ODM 4.Our salesman is with rich experience in foreign trade and efficient work efficiency 5.High-quality after-sales service to solve all your doubts

Product Paramenters

Model	SGPE1000-121	SGPE1000-122	SGPE1000-241	SGPE1000-242	SGPE1000-481	SGPE1000-482
Rated Power	1000W
Surge Power	2000W(few seconds)
Input Voltage	12VDC			24VDC			48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 2A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A			0.3A			0.1A
DC Voltage Range	10-15.5V			20-31V			40-61V
Low Voltage Alarm	10.5±0.5V			21±0.5V			42±1V
Low Voltage Shut Down	10±0.5V			20±0.5V			40±1V
Low Voltage Recovery	13±0.5V			24±0.5V			48±1V
Over Voltage Shut Down	15.5±0.5V			31±0.5V			61±1V
Over Voltage Recovery	14.8V±0.5V			29V±0.5V			59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	28.616.59.2cm (L×W×H)
Meas./Ctn	484640cm / 6pcs
N.W./Unit	3.1KG
G.W./Ctn	22KGS
Packing	box
Warranty	2 Years

Products Description

Recommend Products

Company Profile

Production workshop

FAQ

Q:Are you a directly factory or trading company?
A:We are inverter manufacturer.

Q: How does your factory do regarding quality control?
A: Quality is the priority. We always attach great importance to quality
controlling from the start to the end. All our products have gained CE, FCC, ROHS certification.

Q:What can you do?
A:1.AII of our products have proceeded aging test before shipment and we guarantee safety while using our products.
2. OEM/ODM orders are warmly welcomed!

Q:Warranty and return:
A:1. Products have been tested by 48hours continuous load aging before ship out.wanrranty is 2 years
2. We own the best after-sale service team, if any problem happens, our team will do our best to solve it for you.

Q:Is sample available and free?
A:Sample is available, but the sample cost should be pay by you. The cost of sample will be refund after further order.

Q:Do you accept customized order?
A:Yes, we do.

Q:What's the delivery time?
A:It usually takes 7-20 days after confirming payment, but specific time should be based on tne order quantity.
