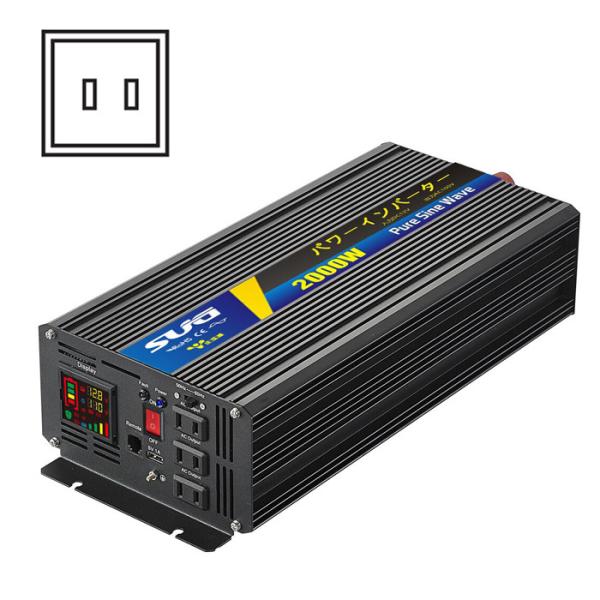

Digital Display 2000W 48VDC High Frequency Power Inverter

Product Categories

SUG NEW ENERGY CO., LTD

Contact Now

Add to Cart

Digital Display 49cm 48VDC High Frequency Power Inverter

ABSOLUTELY PURE SINE WAVE INVERTER:

Transfer 12/24/48VDC to 230/240VAC

provides 2000W continuous & 4000W peak power for your load.

Features with 1 AC receptacles, 5VDC USB port, 1 digital display, high current DC terminals.

Product Specification:

Model	SGPE2000-121	SGPE2000-122	SGPE2000-241	SGPE2000-242	SGPE2000-481	SGPE2000-482
Rated Power	2000W
Surge Power	4000W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5VDC
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	1.4A		0.8A		0.3A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	37.316.59.2cm (L×W×H)
Meas./Ctn	494631.5cm/4pcs
N.W./Unit	4.3KG
G.W./Ctn	20KGS
Packing	box
Warranty	2 Years
