220V PV High Frequency Power Inverter 1000W 1500W

Ask Lasest Price
Brand Name :	SUG
Model Number :	SGPR-600W
Certification :	CE & ROHS & FCC & PSE
Price :
Payment Terms :	T/T, Western Union, Paypal
Supply Ability :	9000pcs/month
Delivery Time :	Sample: 1-2days Bulk Order: 10-15days

Add to Cart

Product Details
Company Profile

220V PV High Frequency Power Inverter 1000W 1500W

12V to 220V High Frequency Power Inverter 600 Watt 1000W 1500W Single Output

Description of the products:

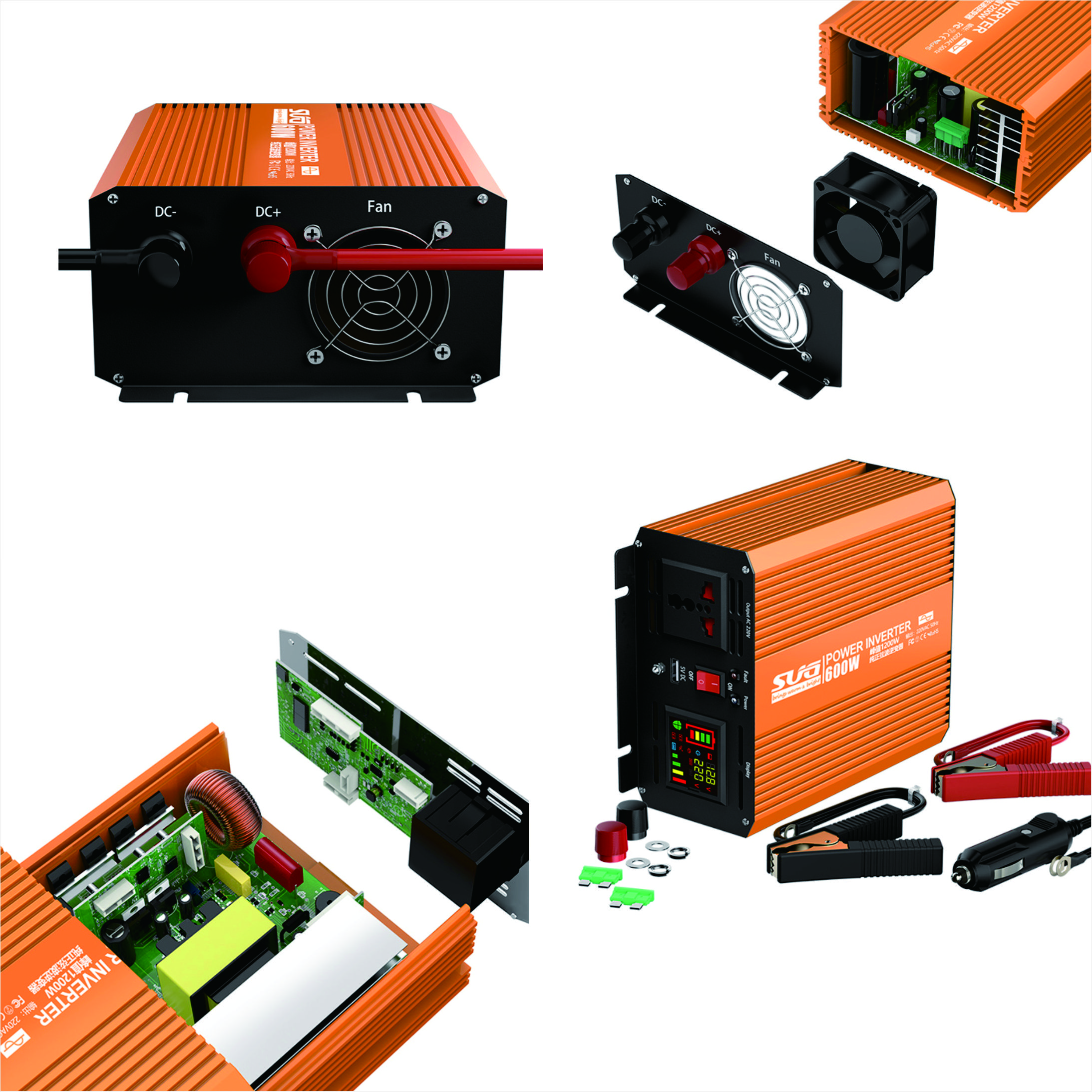

This unit is high frequency pure sine wave inverter.

Its rated power is 600w and surge power is 1200w.

We provide 2 years warranty. It means that we provide spare parts for free within the warranty year.

Even though exceeding the warranty year, we still provide help, we want to do a long cooperation with you.

It can run any load, like TV, fridge, microwave, computer and so on.

Company Profile:

SUG(shanggao) in Chinese means Gracious & Exploration, which is the spirit we are following since our establish. For years we have been concentrating on offering the integrated power solution to our worldwide customers, and has gained various of certificate worldwide, such as FCC & ETL for North America, CE & ROHS for Europe, PSE for Japan.

Products Specification:

Model	SGPR600-121	SGPR600-122	SGPR600-241	SGPR600-242	SGPR600-481	SGPR600-482
Rated Power	600W
Surge Power	1200W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 0.5A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	20.2158cm (L×W×H)
Meas./Ctn	633438.5cm / 10pcs
N.W./Unit	2.0KG
G.W./Ctn	24KGS
Packing	box
Warranty	2 Years

Inverter Display:
