EU Socket Input 72V Power Inverter For Solar System
Description:
Its rated power is 600w and peak power is 1200w
SGPR is high frequency pure sine wave inverter with E-display and
remote switch.
The E-display can show power on, battery connected, battery level,
frequency
output load percent, inverter normal working, inverter under
protection, inverter low voltage protection
inverter over voltage protection, inverter overload protection,
inverter over temperature protection.
The wire of the remote switch is 2 meters.
It can run any load, such as LED light, computer, fan, TV, hair
dryer and so on.
Only the power of the load is not more 600w, it is ok.
It is light and easy to carry.
RFQ:
1. How to buy the products?
Pls contact with our salesman, she will recommend applicable
products for you according to your requirements.
2.What is an inverter?
An inverter is a DC powered device that takes DC power (battery or
solar, for example)
and converts it into AC "household" power for running
electronics/electrical equipment and appliances.
3.How is an inverter different from an UPS?
An UPS typically includes the battery and battery charger in one
stand-alone unit.
The input voltage window for UPS is comparatively less than that of
inverter.
However, there are UPS systems that use external batteries, and
Power Stream makes inverters with battery chargers,
so the differences blur as features proliferate.
Products Specification:
| Model | SGPR600-121 | SGPR600-122 | SGPR600-241 | SGPR600-242 | SGPR600-481 | SGPR600-482 |
| Rated Power | 600W |
| Surge Power | 1200W(few seconds) |
| Input Voltage | 12VDC | 24VDC | 48VDC |
| Output Voltage | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% | 110VAC±5% | 220VAC±5% |
| USB Port | 5V 0.5A |
| Frequency | 50Hz±3 or 60Hz±3 |
| Output Waveform | Pure Sine Wave |
| Soft Start | YES |
| AC Regulation | THD<3%(Linear Load) |
| Output Efficiency | 94% MAX |
| No Load Current | 0.6A | 0.3A | 0.1A |
| DC Voltage Range | 10-15.5V | 20-31V | 40-61V |
| Low Voltage Alarm | 10.5±0.5V | 21±0.5V | 42±1V |
| Low Voltage Shut Down | 10±0.5V | 20±0.5V | 40±1V |
| Low Voltage Recovery | 13±0.5V | 24±0.5V | 48±1V |
| Over Voltage Shut Down | 15.5±0.5V | 31±0.5V | 61±1V |
| Over Voltage Recovery | 14.8V±0.5V | 29V±0.5V | 59V±1V |
| Cooling Way | Intelligent Cooling Fan |
| Protection | Battery Low Voltage & Over Voltage, Over Load, Over Temperature,
Short Circuit |
| Working Temperature | -10ºC - +50ºC |
| Net Dimension | 20.2*15*8cm (L×W×H) |
| Meas./Ctn | 63*34*38.5cm / 10pcs |
| N.W./Unit | 2.0KG |
| G.W./Ctn | 24KGS |
| Packing | box |
| Warranty | 2 Years |

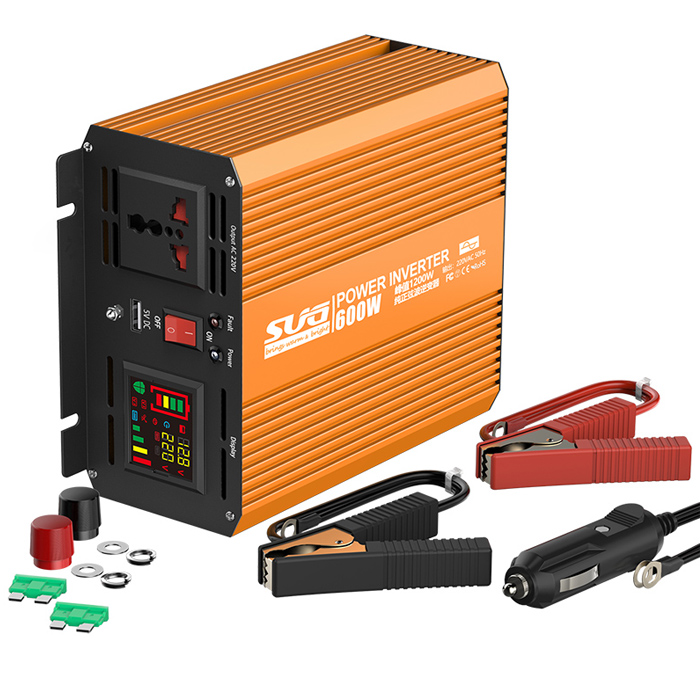

Products Display:
E-display:
Remote Switch:
