Silent Fan 36VDC Pure Sine Wave Grid Tied Pv Inverter For Car

Product Categories

SUG NEW ENERGY CO., LTD

Contact Now

Add to Cart

36VDC To 220VAC Pure Sine Wave Inverter 600W For Car

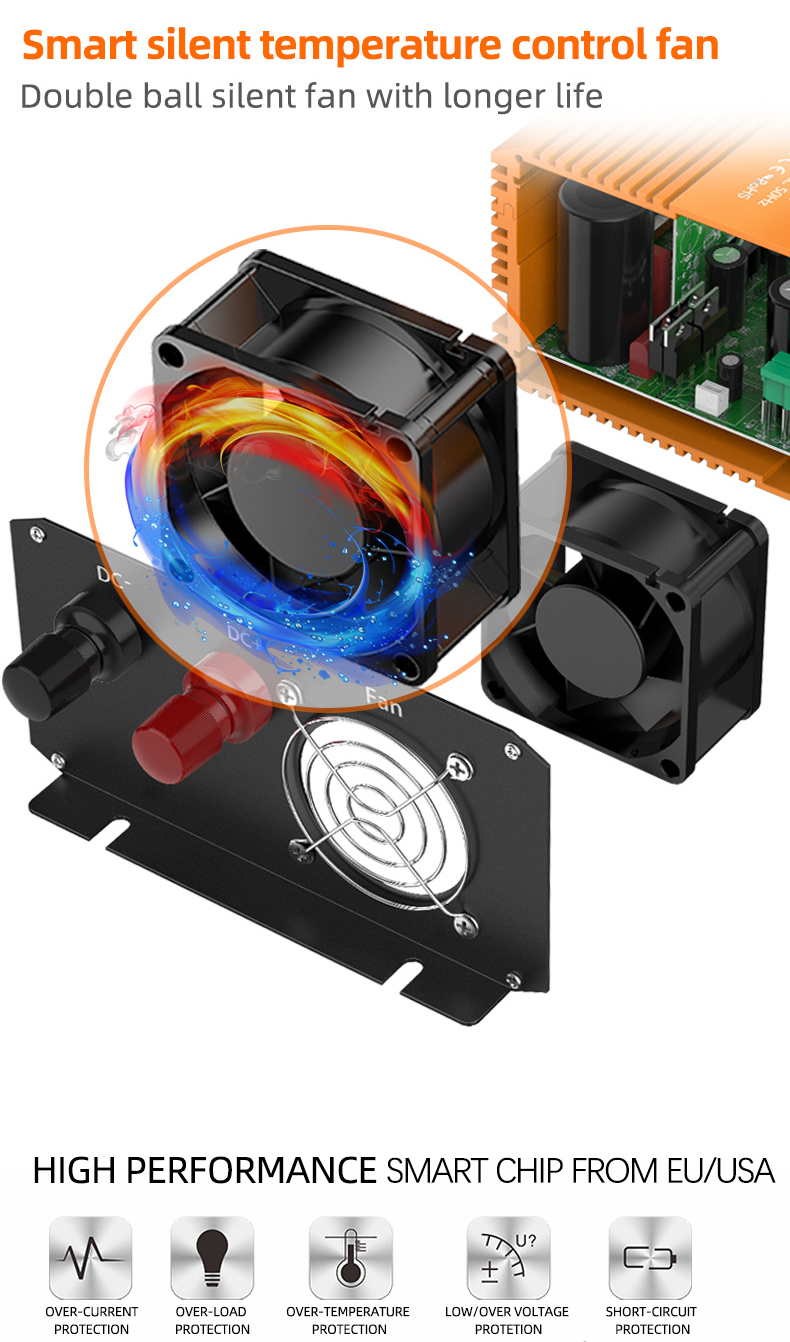

The fan is smart silent temperature control fan.

The double ball silent fan with longer life.

Products Specification:

Model	SGPE600-121	SGPE600-122	SGPE600-241	SGPE600-242	SGPE600-481	SGPE600-482
Rated Power	600W
Surge Power	1200W(few seconds)
Input Voltage	12VDC		24VDC		48VDC
Output Voltage	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%	110VAC±5%	220VAC±5%
USB Port	5V 0.5A
Frequency	50Hz±3 or 60Hz±3
Output Waveform	Pure Sine Wave
Soft Start	YES
AC Regulation	THD<3%(Linear Load)
Output Efficiency	94% MAX
No Load Current	0.6A		0.3A		0.1A
DC Voltage Range	10-15.5V		20-31V		40-61V
Low Voltage Alarm	10.5±0.5V		21±0.5V		42±1V
Low Voltage Shut Down	10±0.5V		20±0.5V		40±1V
Low Voltage Recovery	13±0.5V		24±0.5V		48±1V
Over Voltage Shut Down	15.5±0.5V		31±0.5V		61±1V
Over Voltage Recovery	14.8V±0.5V		29V±0.5V		59V±1V
Cooling Way	Intelligent Cooling Fan
Protection	Battery Low Voltage & Over Voltage, Over Load, Over Temperature, Short Circuit
Working Temperature	-10ºC - +50ºC
Net Dimension	20.2158cm (LWH)
Meas./Ctn	633438.5cm / 10pcs
N.W./Unit	2.0KG
G.W./Ctn	24KGS
Packing	box
Warranty	2 Years
